3060283 | Phoenix Contact
Protective conductor terminal, screw/plug-in connection, 0.14-6.0 mm², 3 pole, 6 kV, yellow/green, 3060283
Unit Price (€ / pc.)
7.5089 € *
Available: 48 pcs.
Available in 5 Days: 298 pcs. - if ordered today
Total Price:
7.51 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5089 €
10 pcs.
6.9020 €
50 pcs.
6.2832 €
100 pcs.
5.6525 €
*incl. VAT plus shipping costs
Subject to prior sale

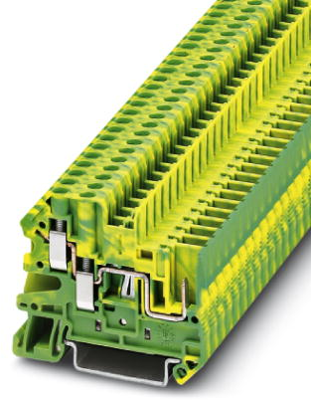

Ground modular terminal block, 3060283, Phoenix Contact
Ground modular terminal block, number of connections: 3, connection method: Screw/plug-in connection, cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green/yellow.
Features
- Same shape and pitch as the feed-through terminal blocks
- Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Connection | screw/plug-in connection | |
| AWG cross-section | AWG 26 to 10 | |
| Number of terminals | 3 | |
| Length | 55.7 mm | |
| Height | 47.5 mm | |
| Rated surge voltage | 6 kV | |
| Width | 6.2 mm | |
| Pin number | 3 pole | |
| Colour | yellow/green | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.14-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
