3050002 | Phoenix Contact

Through terminal block, bolt connection, 2.5-35 mm², 1 pole, 125 A, 8 kV, gray, 3050002

Order No.: 60P4116
EAN: 4046356431415
MPN:
3050002
RTO 8-TC
Series: RTO
3050002 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
10.5791 € *
Available in 10 days: 397 pcs. - if ordered today
Total Price:
10.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.5791 €

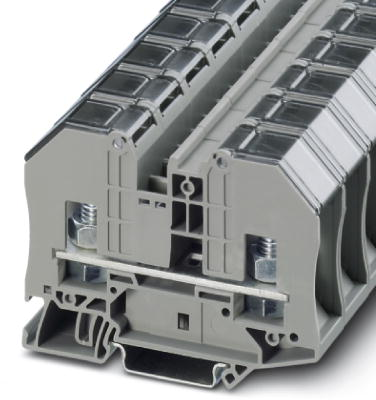

Feed-through terminal block, 3050002, Phoenix Contact

Feed-through terminal block with bolt connection technology and transparent safety contact hood, cross section: 2.5 - 35 mm², AWG: 14 - 2, width 20.2 mm, color: gray.

Features

  • Four bridge shafts per terminal block
  • Terminal point always freely accessible
Technical specifications
Version through terminal block
Number of terminals 2
Pin number 1 pole
Cable cross-section 2.5-35 mm²
AWG cross-section AWG 14 to 2
Rated surge voltage 8 kV
Rated current 125 A
Rated Voltage 1000 V
Degree of soiling 3
Length 84 mm
Width 20.2 mm
Height 63.2 mm
Connection bolt connection
Colour gray
Logistics
Customs tariff number 85369010
Country of origin CN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
