3049550 | Phoenix Contact
High current connector, bolt connection, 2.5-50 mm², 2 pole, 150 A, 8 kV, gray, 3049550
Unit Price (€ / pc.)
13.6493 € *
Available in 5 Days: 2,914 pcs. - if ordered today

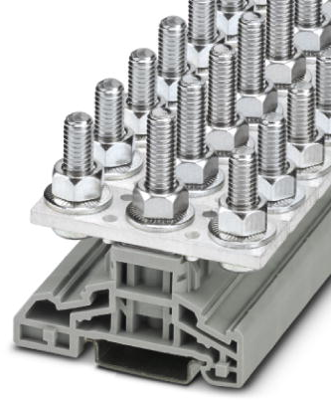

High current connector, 3049550, Phoenix Contact
High current connector, rated voltage: 1000 V, nominal current: 150 A, connection method: Bolt connection, 1 level, Rated cross section: 50 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Comprehensive range of accessories for safe and user-friendly wiring of conductors up to 120 mm²
- Two different partition plates can be used for the range of single and double-bolt terminal blocks
- 2 and 3-pos. connection rails can be used for potential distribution
- The feed-through window provided in the partition plates can be easily removed for mounting the connection rails
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | bolt connection | |
| Width | 21 mm | |
| Colour | gray | |
| Rated surge voltage | 8 kV | |
| Pin number | 2 pole | |
| Number of terminals | 2 | |
| Length | 67 mm | |
| Degree of soiling | 3 | |
| Rated Voltage | 1000 V | |
| Version | high current connector | |
| Height | 65.1 mm | |
| Rated current | 150 A | |
| Cable cross-section | 2.5-50 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
