3049547 | Phoenix Contact

High current connector, bolt connection, 2.5-35 mm², 2 pole, 125 A, 8 kV, gray, 3049547

Order No.: 60P1568
EAN: 4046356310291
MPN:
3049547
HV M6/2
Series: HV
3049547 Phoenix Contact Series Terminals

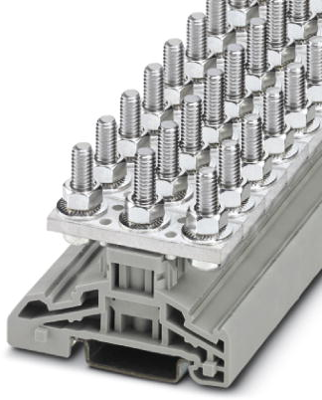

Image may differ
Unit Price (€ / pc.)
12.7449 € *
Available in 5 Days: 353 pcs. - if ordered today
Total Price:
12.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.7449 €

High current connector, 3049547, Phoenix Contact

High current connector, rated voltage: 1000 V, nominal current: 125 A, connection method: Bolt connection, 1 level, Rated cross section: 35 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • Comprehensive range of accessories for safe and user-friendly wiring of conductors up to 120 mm²
  • Two different partition plates can be used for the range of single and double-bolt terminal blocks
  • 2 and 3-pos. connection rails can be used for potential distribution
  • The feed-through window provided in the partition plates can be easily removed for mounting the connection rails
Technical specifications
Filter Property Value
Connection bolt connection
Width 16 mm
Colour gray
Rated surge voltage 8 kV
Pin number 2 pole
Number of terminals 2
Length 64 mm
Degree of soiling 3
Rated Voltage 1000 V
Version high current connector
Height 56.1 mm
Rated current 125 A
Cable cross-section 2.5-35 mm²
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
