3048454 | Phoenix Contact
Knife disconnect terminal, screw connection, 0.2-4.0 mm², 10 A, 4 kV, gray, 3048454
Unit Price (€ / pc.)
14.6608 € *
Standard delivery time from the manufacturer is: 1 Week

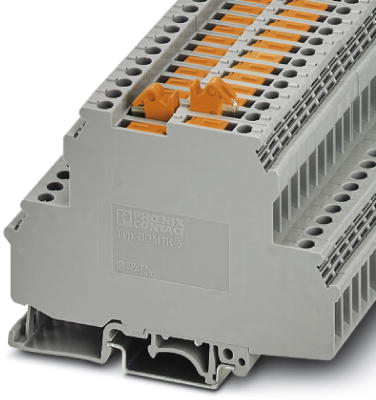

Knife disconnect terminal block, 3048454, Phoenix Contact
Knife disconnect terminal block, with test socket screws for accommodating Test plug (1 test socket screw per level), rated voltage: 400 V, nominal current: 10 A, 1st and 2nd level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², 2nd level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, NS 32, color: gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 400 V | |
| Connection | screw connection | |
| AWG cross-section | AWG 24 to 12 | |
| Length | 93 mm | |
| Height | 68.5 mm | |
| Rated surge voltage | 4 kV | |
| Width | 6.2 mm | |
| Colour | gray | |
| Version | knife disconnect terminal | |
| Cable cross-section | 0.2-4.0 mm² | |
| Rated current | 10 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
