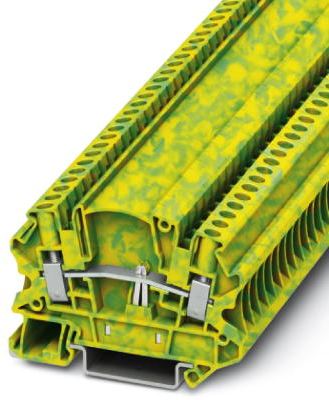

3047478 | Phoenix Contact
Protective conductor terminal, screw connection, 0.14-6.0 mm², 2 pole, 6 kV, yellow/green, 3047478
Unit Price (€ / pc.)
10.4006 € *
Available in 5 Days: 2,146 pcs. - if ordered today
Total Price:
10.40 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4006 €
10 pcs.
9.5676 €
50 pcs.
8.6989 €
100 pcs.
7.8302 €
*incl. VAT plus shipping costs
Subject to prior sale
Ground modular terminal block, 3047478, Phoenix Contact
Ground modular terminal block, number of connections: 2, connection method: Screw connection, cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green/yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 10 | |
| Rated surge voltage | 6 kV | |
| Degree of soiling | 3 | |
| Pin number | 2 pole | |
| Length | 66 mm | |
| Colour | yellow/green | |
| Cable cross-section | 0.14-6.0 mm² | |
| Connection | screw connection | |
| Number of terminals | 2 | |
| Width | 6.2 mm | |
| Height | 49.5 mm | |
| Version | protective conductor terminal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
