3046715 | Phoenix Contact

Component terminal block, screw connection, 0.14-4.0 mm², 4 pole, 24 A, 6 kV, gray, 3046715

Order No.: 60P5966
EAN: 4017918997243
MPN:
3046715
UTTB 2,5-LA 230
Series: UTTB
3046715 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
8.3062 € *
Available in 5 Days: 26 pcs. - if ordered today
Total Price:
415.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
8.3062 €

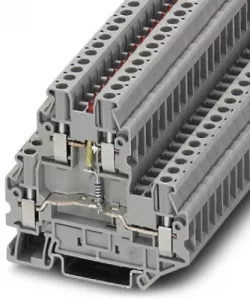

Component terminal block, 3046715, Phoenix Contact

Component terminal block, The voltage is determined by the LED version selected., rated voltage: 230 V, nominal current: 24 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • Design width of just 5.2 mm
Technical specifications
Filter Property Value
Colour gray
Version component terminal block
Pin number 4 pole
Rated Voltage 230 V
Width 5.2 mm
Cable cross-section 0.14-4.0 mm²
Rated current 24 A
Connection screw connection
Degree of soiling 3
Height 64.4 mm
Rated surge voltage 6 kV
Length 69.9 mm
AWG cross-section AWG 26 to 12
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
