3046671 | Phoenix Contact

Component terminal block, screw connection, 0.14-4.0 mm², 4 pole, 24 A, 6 kV, gray, 3046671

Order No.: 60P5960
EAN: 4055626018867
MPN:
3046671
UTTB 2,5-2R/NAMUR
Series: UTTB
3046671 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
9.4248 € *
Available in 10 days: 50 pcs. - if ordered today
Total Price:
471.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
9.4248 €

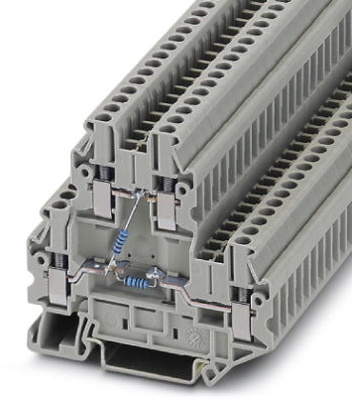

Component terminal block, 3046671, Phoenix Contact

Component terminal block, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • Design width of just 5.2 mm
Technical specifications
Height 64.4 mm
AWG cross-section AWG 26 to 12
Width 5.2 mm
Length 69.9 mm
Cable cross-section 0.14-4.0 mm²
Connection screw connection
Rated Voltage 500 V
Colour gray
Pin number 4 pole
Version component terminal block
Degree of soiling 3
Rated current 24 A
Rated surge voltage 6 kV
Logistics
Customs tariff number 85369010
Country of origin PL
Compliance
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
