3046223 | Phoenix Contact
Protective conductor terminal, screw connection, 0.14-6.0 mm², 2 pole, 8 kV, yellow/green, 3046223
Unit Price (€ / pc.)
3.7604 € *
Available in 5 Days: 8,408 pcs. - if ordered today

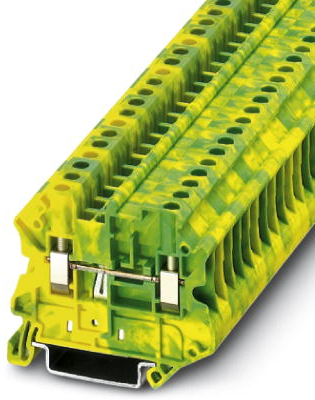

Ground modular terminal block, 3046223, Phoenix Contact
Ground modular terminal block, connection method: Screw connection, cross section: 0.14 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- The consistent labeling and bridging of terminal blocks is an advantage
- PE terminal block enables terminal strips of the same shape to be configured with disconnect and knife disconnect terminal blocks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 6.2 mm | |
| Colour | yellow/green | |
| Rated surge voltage | 8 kV | |
| Pin number | 2 pole | |
| Number of terminals | 2 | |
| AWG cross-section | AWG 26 to 10 | |
| Length | 57.8 mm | |
| Degree of soiling | 3 | |
| Version | protective conductor terminal | |
| Height | 47.5 mm | |
| Cable cross-section | 0.14-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
