3044238 | Phoenix Contact

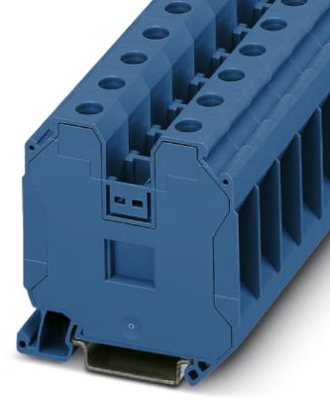

Through terminal block, screw connection, 1.5-50 mm², 2 pole, 125 A, 8 kV, blue, 3044238
Unit Price (€ / pc.)
5.3907 € *
Available: 0 pcs.
Available in 10 days: 5,477 pcs.
Leadtime: 2 Weeks **
Feed-through terminal block, 3044238, Phoenix Contact
Feed-through terminal block, rated voltage: 1000 V, nominal current: 125 A, connection method: Screw connection, Rated cross section: 35 mm², cross section: 1.5 mm² - 50 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- The reducing bridges can be used to connect terminal blocks with different connection technologies
- The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
- Easy and time-saving potential supply and distribution of large currents and cross sections up to 35 mm² with reducing bridges
- Tested for railway applications
Technical specifications
| Version | Durchgangsklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 1,5-50 mm² | |
| AWG cross-section | AWG 16 bis 1/0 | |
| Rated surge voltage | 8 kV | |
| Rated current | 125 A | |
| Rated Voltage | 1000 V | |
| Degree of soiling | 3 | |
| Length | 61.2 mm | |
| Width | 16 mm | |
| Height | 65.1 mm | |
| Connection | Schraubanschluss | |
| Colour | blau |
Download
Logistics
| Country of origin | TR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
