3044160 | Phoenix Contact

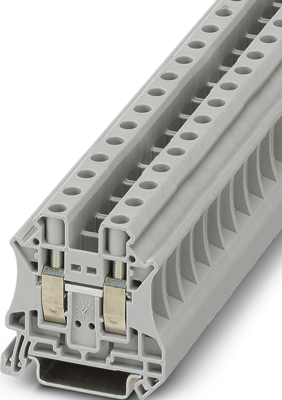

Through terminal block, screw connection, 0.5-16 mm², 57 A, 8 kV, gray, 3044160
Unit Price (€ / pc.)
2.6924 € *
Available in 5 Days: 40,453 pcs. - if ordered today
Total Price:
2.69 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6924 €
10 pcs.
2.5001 €
50 pcs.
2.3334 €
100 pcs.
2.1876 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal block, 3044160, Phoenix Contact
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, number of connections: 2, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section
- As well as saving space, the compact design enables user-friendly wiring in a small amount of space
- Optimum screwdriver guidance through closed screw shafts
- Tested for railway applications
- The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 1000 V | |
| Connection | screw connection | |
| AWG cross-section | AWG 20-6 | |
| Length | 47.7 mm | |
| Height | 55 mm | |
| Rated surge voltage | 8 kV | |
| Width | 10.2 mm | |
| Colour | gray | |
| Version | through terminal block | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 57 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
