3044093 | Phoenix Contact
Protective conductor terminal, screw connection, 0.14-4.0 mm², 2 pole, 8 kV, yellow/green, 3044093
Unit Price (€ / pc.)
5.0456 € *
Available in 10 days: 1,300 pcs. - if ordered today
Total Price:
5.05 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0456 €
10 pcs.
4.6529 €
50 pcs.
4.2364 €
100 pcs.
3.8080 €
*incl. VAT plus shipping costs
Subject to prior sale

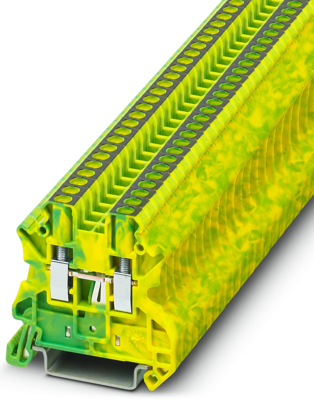

Ground modular terminal block, 3044093, Phoenix Contact
Ground modular terminal block, with black printed head area, number of connections: 2, connection method: Screw connection, cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of terminals | 2 | |
| Connection | screw connection | |
| Version | protective conductor terminal | |
| Width | 5.2 mm | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 26 to 12 | |
| Rated surge voltage | 8 kV | |
| Length | 47.7 mm | |
| Colour | yellow/green | |
| Pin number | 2 pole | |
| Height | 47.5 mm | |
| Cable cross-section | 0.14-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
