3043721 | Phoenix Contact

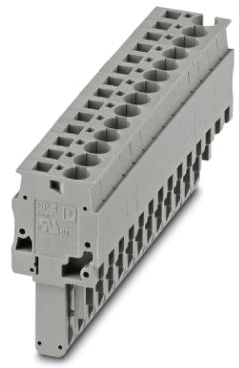

Plug, spring balancer connection, 0.08-6.0 mm², 14 pole, 32 A, 8 kV, gray, 3043721
Unit Price (€ / pc.)
28.8099 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
28.81 € *
Price list
Quantity
Price per unit*
1 pcs.
28.8099 €
5 pcs.
26.7988 €
10 pcs.
24.3831 €
25 pcs.
21.9436 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 3043721, Phoenix Contact
Plug, rated voltage: 800 V, nominal current: 32 A, number of positions: 14, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², color: gray.
Features
- Large-surface labeling option
- Practical coding option
- Tested for railway applications
Technical specifications
| Version | plug | |
| Number of terminals | 14 | |
| Pin number | 14 pole | |
| Cable cross-section | 0.08-6.0 mm² | |
| AWG cross-section | AWG 28 to 10 | |
| Rated surge voltage | 8 kV | |
| Rated current | 32 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 21 mm | |
| Width | 86.8 mm | |
| Height | 41.5 mm | |
| Connection | spring balancer connection | |
| Colour | gray |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
