3042557 | Phoenix Contact

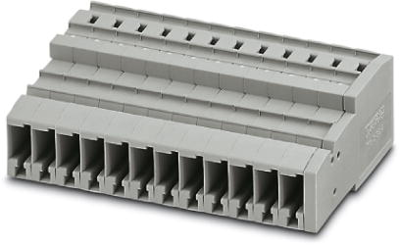

COMBI jack, spring balancer connection, 0.08-6.0 mm², 12 pole, 32 A, 8 kV, gray, 3042557
Unit Price (€ / pc.)
21.2177 € *
Available: 0 pcs.
Available in 10 days: 47 pcs.
Leadtime: 2 Weeks **
Total Price:
21.22 € *
Price list
Quantity
Price per unit*
1 pcs.
21.2177 €
10 pcs.
19.5160 €
50 pcs.
17.9571 €
100 pcs.
16.3387 €
*incl. VAT plus shipping costs
**Subject to prior sale
COMBI receptacle, 3042557, Phoenix Contact
COMBI receptacle, rated voltage: 800 V, nominal current: 32 A, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², color: gray.
Features
- Standard strain relief can be used
- Tested for railway applications
Technical specifications
| Version | COMBI jack | |
| Number of terminals | 2 | |
| Pin number | 12 pole | |
| Cable cross-section | 0.08-6.0 mm² | |
| AWG cross-section | AWG 28 to 10 | |
| Rated surge voltage | 8 kV | |
| Rated current | 32 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 48.6 mm | |
| Width | 74.4 mm | |
| Height | 22.3 mm | |
| Connection | spring balancer connection | |
| Colour | gray |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
