3040685 | Phoenix Contact
Double level terminal, spring-cage/plug-in connection, 0.08-4.0 mm², 4 pole, 22 A, 6 kV, blue, 3040685
Unit Price (€ / pc.)
5.6882 € *
Available in 5 Days: 100 pcs. - if ordered today

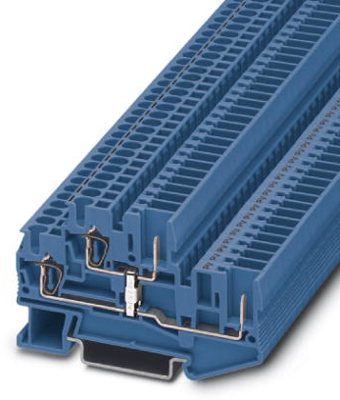

Double-level terminal block, 3040685, Phoenix Contact
Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage/plug-in connection, 1st and 2nd level connection left, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², 1st and 2nd level connection right, mounting type: NS 35/15, NS 35/7,5, color: blue.
Features
- Potential routing on two levels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Colour | blue | |

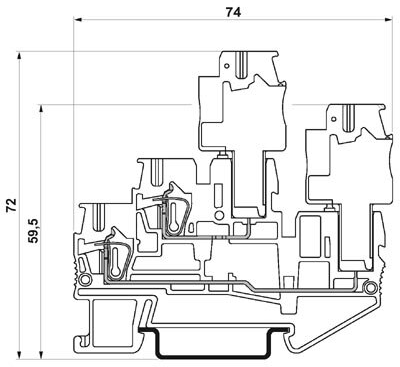

| Length | 71.5 mm | |
| Width | 5.2 mm | |
| Version | double level terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated surge voltage | 6 kV | |
| Rated Voltage | 500 V | |
| Pin number | 4 pole | |
| Cable cross-section | 0.08-4.0 mm² | |
| Connection | spring-cage/plug-in connection | |
| Height | 47.5 mm | |
| Rated current | 22 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
