3040070 | Phoenix Contact

Double level terminal, spring-cage/plug-in connection, 0.08-4.0 mm², 22 A, 6 kV, gray, 3040070

Order No.: 60P4946
EAN: 4017918832674
MPN:
3040070
STTB 2,5/2P-PV
Series: STTB

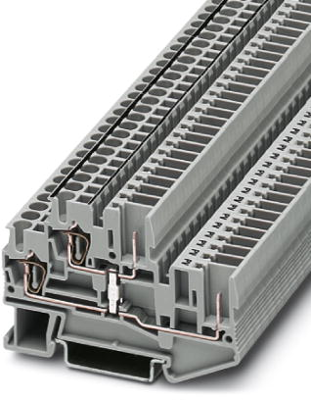

3040070 Phoenix Contact Series Terminals Image 1

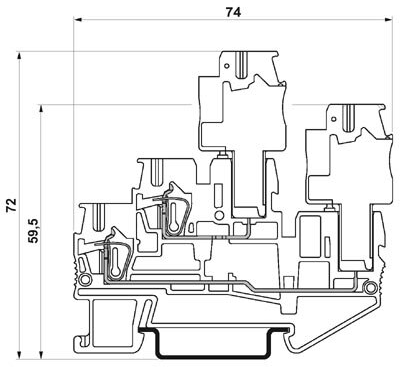

3040070 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
5.6882 € *
Available in 10 days: 1,950 pcs. - if ordered today
Total Price:
5.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.6882 €

Double-level terminal block, 3040070, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage/plug-in connection, 1st and 2nd level connection left, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², 1st and 2nd level connection right, mounting type: NS 35/15, NS 35/7,5, color: gray.

Features

  • Potential routing on two levels
  • Tested for railway applications
Technical specifications
Colour gray
AWG cross-section AWG 28 to 12
Rated current 22 A
Width 5.2 mm
Height 47.5 mm
Length 71.5 mm
Cable cross-section 0.08-4.0 mm²
Version double level terminal
Connection spring-cage/plug-in connection
Degree of soiling 3
Rated Voltage 500 V
Rated surge voltage 6 kV
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
