3040041 | Phoenix Contact
Protective conductor terminal, spring-cage/plug-in connection, 0.08-4.0 mm², 4 pole, 6 kV, yellow/green, 3040041
Unit Price (€ / pc.)
8.5204 € *
Available: 0 pcs.
Available in 10 days: 766 pcs.
Leadtime: 2 Weeks **
Total Price:
8.52 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5204 €
10 pcs.
7.8302 €
50 pcs.
7.1281 €
100 pcs.
6.4260 €
*incl. VAT plus shipping costs
**Subject to prior sale

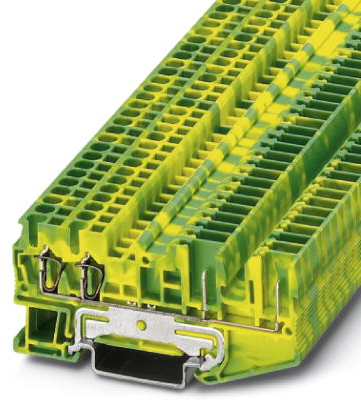

Spring cage ground terminal block, 3040041, Phoenix Contact
Spring cage ground terminal block, number of connections: 4, connection method: Springcage/plug-in connection, 1st and 2nd level connection left, cross section: 0.08 mm² - 4 mm², 1st level connection right, mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- Same shape and pitch as the basic terminal blocks
- Tested for railway applications
Technical specifications
| Connection | Zugfeder-/Steckanschluss | |
| Number of terminals | 4 | |
| Version | Schutzleiterklemme | |
| AWG cross-section | AWG 28 bis 12 | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | gelb/grün | |
| Height | 36.5 mm | |
| Length | 81 mm | |
| Cable cross-section | 0,08-4,0 mm² | |
| Pin number | 4-polig | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
