3038480 | Phoenix Contact
Protective conductor double level terminal, spring balancer connection, 0.08-4.0 mm², 6 kV, yellow/green, 3038480
Not suitable for new designs - Last time buy manufacturer: 06.30.2025
Unit Price (€ / pc.)
12.0904 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.09 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0904 €
10 pcs.
11.2455 €
50 pcs.
10.2340 €
100 pcs.
9.2225 €
*incl. VAT plus shipping costs
**Subject to prior sale

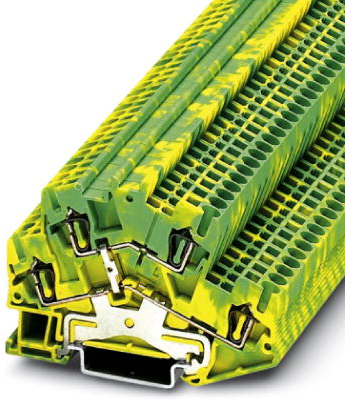

Protective conductor double level terminal block, 3038480, Phoenix Contact
Protective conductor double-level terminal block, number of connections: 4, connection method: Spring-cage connection, 1st and 2nd level, cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- Two large-surface labeling options
Technical specifications
| Colour | yellow/green | |
| AWG cross-section | AWG 28 to 12 | |
| Width | 5.2 mm | |
| Height | 55 mm | |
| Length | 78 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Number of terminals | 4 | |
| Version | protective conductor double level terminal | |
| Connection | spring balancer connection | |
| Degree of soiling | 3 | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
