3038448 | Phoenix Contact
Disconnect terminal, spring balancer connection, 0.08-4.0 mm², 20 A, 6 kV, gray, 3038448
Unit Price (€ / pc.)
4.0341 € *
Available in 5 Days: 1,888 pcs. - if ordered today
Total Price:
4.03 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0341 €
10 pcs.
3.7128 €
50 pcs.
3.3796 €
100 pcs.
3.0345 €
*incl. VAT plus shipping costs
Subject to prior sale

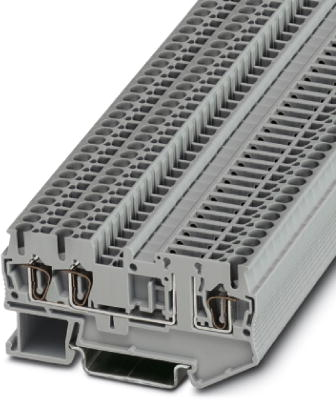

Disconnect terminal block, 3038448, Phoenix Contact
Disconnect terminal block, rated voltage: 400 V, nominal current: 20 A, 1 level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm² , mounting: NS 35/7,5, NS 35/15, color: gray.
Features
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 400 V | |
| Connection | spring balancer connection | |
| AWG cross-section | AWG 28 to 12 | |
| Number of terminals | 2 | |
| Length | 72 mm | |
| Height | 36.5 mm | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | gray | |
| Version | disconnect terminal | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
