3036821 | Phoenix Contact
Fuse plug, Plug-in connection, black
Unit Price (€ / pc.)
12.5426 € *
Available in 10 days: 3,130 pcs. - if ordered today
Total Price:
12.54 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5426 €
10 pcs.
11.5311 €
50 pcs.
10.4958 €
100 pcs.
9.4605 €
*incl. VAT plus shipping costs
Subject to prior sale

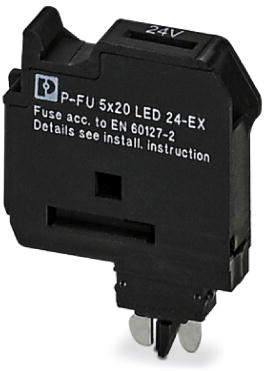

Fuse plug, 3036821, Phoenix Contact
Fuse plug, Prior to replacing the cartridge fuse, disconnect the fuse connector from the basic terminal block., rated voltage: 500 V, nominal current: 6.3 A, fuse type: G / 5 x 20, color: black.
Features
- Large-surface labeling option
- Test contacts on both sides of the fuse
- Versions with bipolar error display
- Can be used for overload/short-circuit protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 500 V | |
| Height | 25 mm | |
| Degree of soiling | 3 | |
| Width | 6.2 mm | |
| Length | 28 mm | |
| Connection | plug-in connection | |
| Colour | black | |
| Rated current | 6.3 A | |
| Version | fuse plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
