3036330 | Phoenix Contact

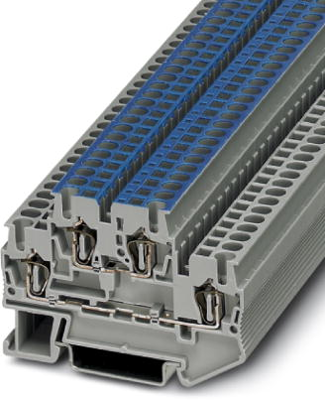

Double-level spring-cage terminal, spring balancer connection, 0.08-4.0 mm², 22 A, 6 kV, gray, 3036330

Order No.: 60P4963
EAN: 4017918823139
MPN:
3036330
STTB 2,5-L/N
Series: STTB
3036330 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
4.0579 € *
Available in 10 days: 559 pcs. - if ordered today
Total Price:
4.06 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0579 €
10 pcs.
3.7247 €
50 pcs.
3.3915 €
100 pcs.
3.0583 €
*incl. VAT plus shipping costs
Subject to prior sale

Double-level spring-cage terminal block, 3036330, Phoenix Contact

Double-level spring-cage terminal block, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • The color coding of the PE and N levels helps to create clear and unambiguous potential distribution
  • The PE/L and PE/N types feature ground conductor contact with the DIN rail in the lower level, while the upper level is designed as a feedthrough level
  • These mixed versions combine the advantages of double-level feed-through terminal blocks and ground terminal blocks of the same shape
Technical specifications
Filter Property Value
Degree of soiling 3
Colour gray
Version double-level spring-cage terminal
Rated surge voltage 6 kV
Length 67.5 mm
Connection spring balancer connection
Rated Voltage 500 V
Cable cross-section 0.08-4.0 mm²
Rated current 22 A
Height 47.5 mm
AWG cross-section AWG 28 to 12
Width 5.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
