3035688 | Phoenix Contact

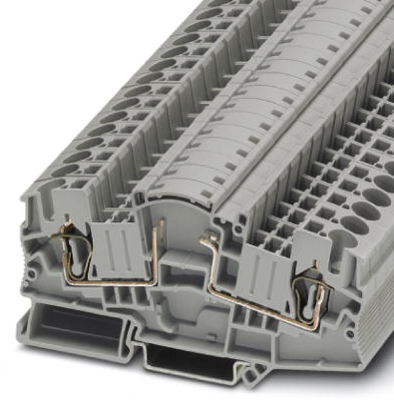

Component terminal block, spring balancer connection, 0.2-10 mm², 2 pole, 30 A, gray, 3035688
Unit Price (€ / pc.)
8.4133 € *
Available in 5 Days: 250 pcs. - if ordered today
Component terminal block, 3035688, Phoenix Contact
Component terminal block, If several diode terminal blocks need adding to the DIN rail, a spacer plate must be placed between them., for installing components that can be individually selected, rated voltage: 500 V, nominal current: 30 A, connection method: Spring-cage connection, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm², color: gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Connection | spring balancer connection | |
| AWG cross-section | AWG 24 to 8 | |
| Number of terminals | 2 | |
| Length | 100.8 mm | |
| Height | 60 mm | |
| Width | 8.2 mm | |
| Pin number | 2 pole | |
| Colour | gray | |
| Version | component terminal block | |
| Cable cross-section | 0.2-10 mm² | |
| Rated current | 30 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
