3035564 | Phoenix Contact

Double-level spring-cage terminal, spring balancer connection, 0.08-4.0 mm², 22 A, 6 kV, gray, 3035564

Order No.: 60P4971
EAN: 4046356344135
MPN:
3035564
STTB 2,5-PT100 MD
Series: STTB
3035564 Phoenix Contact Series Terminals

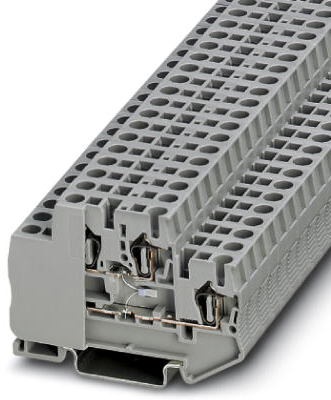

Image may differ
Unit Price (€ / pc.)
14.2443 € *
Available in 10 days: 150 pcs. - if ordered today
Total Price:
712.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
14.2443 €

Double-level spring-cage terminal block, 3035564, Phoenix Contact

Double-level spring-cage terminal block, with temperature sensor, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Features

  • Compact design for maximum space savings
  • Double-level diode and LED terminal blocks perform a wide range of switching tasks
  • Connect the levels using FBS-PV bridges
Technical specifications
Filter Property Value
Degree of soiling 3
Colour gray
Version double-level spring-cage terminal
Rated surge voltage 6 kV
Length 67.5 mm
Connection spring balancer connection
Rated Voltage 500 V
Cable cross-section 0.08-4.0 mm²
Rated current 22 A
Height 47.5 mm
AWG cross-section AWG 28 to 12
Width 7.4 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
