3035535 | Phoenix Contact

Disconnect terminal, spring balancer connection, 0.08-6.0 mm², 2 pole, 20 A, 6 kV, blue, 3035535

Order No.: 60P5002
EAN: 4046356340823
MPN:
3035535
STTBS 4-TG BU
Series: STTBS
3035535 Phoenix Contact Series Terminals

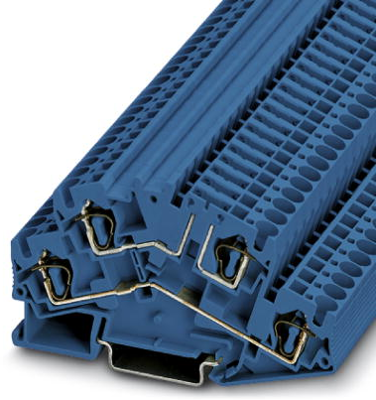

Image may differ

Not suitable for new designs - Last time buy manufacturer: 06.30.2025

Unit Price (€ / pc.)
6.4974 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.4974 €

Disconnect terminal block, 3035535, Phoenix Contact

Disconnect terminal block, rated voltage: 500 V, nominal current: 20 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 6 mm², Rated cross section: 1.5 mm², cross section: 0.08 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Technical specifications
Version disconnect terminal
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.08-6.0 mm²
AWG cross-section AWG 28 to 10
Rated surge voltage 6 kV
Rated current 20 A
Rated Voltage 500 V
Degree of soiling 3
Length 92.4 mm
Width 6.2 mm
Height 55 mm
Connection spring balancer connection
Colour blue
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
