3035483 | Phoenix Contact

Disconnect terminal, spring balancer connection, 0.08-6.0 mm², 2 pole, 28 A, 6 kV, gray, 3035483

Order No.: 60P5001
EAN: 4046356316781
MPN:
3035483
STTBS 4-TG
Series: STTBS
3035483 Phoenix Contact Series Terminals

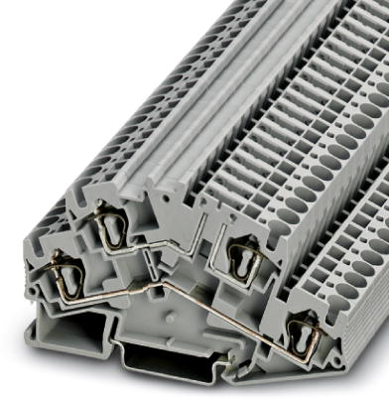

Image may differ

Not suitable for new designs - Last time buy manufacturer: 06.30.2025

Unit Price (€ / pc.)
6.4974 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
6.4974 €

Disconnect terminal block, 3035483, Phoenix Contact

Disconnect terminal block, rated voltage: 500 V, nominal current: 28 A, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 6 mm², cross section: 0.08 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.

Technical specifications
Filter Property Value
Version disconnect terminal
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.08-6.0 mm²
AWG cross-section AWG 28 to 10
Rated surge voltage 6 kV
Rated current 28 A
Rated Voltage 500 V
Degree of soiling 3
Length 92.4 mm
Width 6.2 mm
Height 55 mm
Connection spring balancer connection
Colour gray
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
