3035140 | Phoenix Contact
Lever disconnect terminal, spring balancer connection, 0.08-6.0 mm², 2 pole, 20 A, 6 kV, black/orange, 3035140
Unit Price (€ / pc.)
5.4740 € *
Available in 5 Days: 850 pcs. - if ordered today

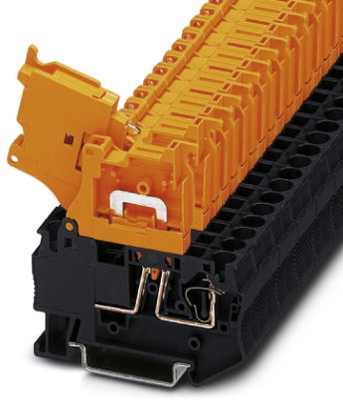

Lever-type disconnect terminal block, 3035140, Phoenix Contact
Lever-type disconnect terminal block, rated voltage: 500 V, nominal current: 20 A, connection method: Spring-cage connection, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, color: black/orange.
Features
- An extremely compact design
- Test connection on both sides in safety lever
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | lever disconnect terminal | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.08-6.0 mm² | |
| AWG cross-section | AWG 28 to 10 | |
| Rated surge voltage | 6 kV | |
| Rated current | 20 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 61.5 mm | |
| Width | 6.2 mm | |
| Height | 62.5 mm | |
| Connection | spring balancer connection | |
| Colour | black/orange |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
