3035108 | Phoenix Contact

Double level terminal, spring balancer connection, 0.08-4.0 mm², 4 pole, 22 A, 6 kV, blue, 3035108

Order No.: 60P4973
EAN: 4017918975258
MPN:
3035108
STTB 2,5-PV BU
Series: STTB
3035108 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
5.6882 € *
Available in 10 days: 900 pcs. - if ordered today
Total Price:
5.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.6882 €

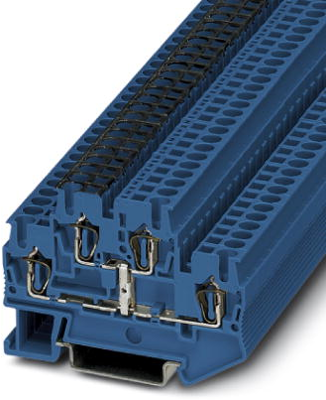

Double-level terminal block, 3035108, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.08 mm²  - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.

Features

  • Compact design for maximum space savings
  • Connect the levels using FBS-PV bridges
Technical specifications
Filter Property Value
Version double level terminal
Number of terminals 4
Pin number 4 pole
Cable cross-section 0.08-4.0 mm²
AWG cross-section AWG 28 to 12
Rated surge voltage 6 kV
Rated current 22 A
Rated Voltage 500 V
Degree of soiling 3
Length 67.5 mm
Width 5.2 mm
Height 47.5 mm
Connection spring balancer connection
Colour blue
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
