3033171 | Phoenix Contact
Double-level spring-cage terminal, spring balancer connection, 0.08-6.0 mm², 4 pole, 36 A, 6 kV, yellow/green, 3033171
Unit Price (€ / pc.)
10.3411 € *
Standard delivery time from the manufacturer is: On Request

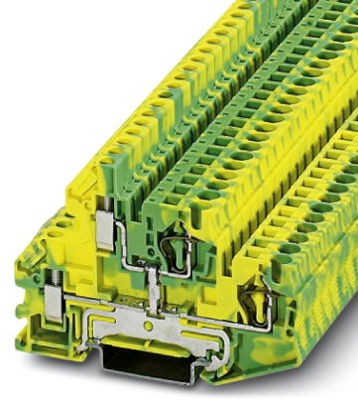

Double-level spring-cage terminal block, 3033171, Phoenix Contact
Double-level spring-cage terminal block, number of connections: 4, connection method: Springcage connection, cross section: 0.08 mm² - 6 mm², connection method: Screw connection, cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow.
Features
- For a clear overview, each terminal point can be labeled
- Can be consistently bridged to the STTB 4 standard double-level terminal blocks
- Can be bridged in both levels to implement different switching tasks
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Connection | spring balancer connection | |
| AWG cross-section | AWG 28 to 10 | |
| Number of terminals | 4 | |
| Length | 81 mm | |
| Height | 55.5 mm | |
| Rated surge voltage | 6 kV | |
| Width | 6.2 mm | |
| Pin number | 4 pole | |
| Colour | yellow/green | |
| Version | double-level spring-cage terminal | |
| Cable cross-section | 0.08-6.0 mm² | |
| Rated current | 36 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
