3031584 | Phoenix Contact

Component terminal block, spring balancer connection, 0.08-4.0 mm², 22 A, 4 kV, gray, 3031584

Order No.: 60P4955
EAN: 4017918183066
MPN:
3031584
STTB 2,5-2DIO/O-UL/UR-UL
Series: STTB
3031584 Phoenix Contact Series Terminals

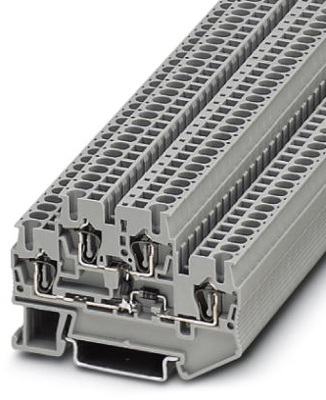

Image may differ
Unit Price (€ / pc.)
9.2463 € *
Available in 10 days: 36 pcs. - if ordered today
Total Price:
9.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.2463 €

Component terminal block, 3031584, Phoenix Contact

Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, rated voltage: 250 V, nominal current: 22 A, 1st and 2nd level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm²  - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray.

Features

  • Double-level diode and LED terminal blocks perform a wide range of switching tasks
Technical specifications
Filter Property Value
Degree of soiling 3
Colour gray
Version component terminal block
Rated surge voltage 4 kV
Length 67.5 mm
Connection spring balancer connection
Rated Voltage 250 V
Cable cross-section 0.08-4.0 mm²
Rated current 22 A
Height 47.5 mm
AWG cross-section AWG 28 to 12
Width 5.2 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
