3031513 | Phoenix Contact

Protective conductor terminal, spring balancer connection, 0.08-1.5 mm², 2 pole, 6 kV, yellow/green, 3031513

Order No.: 09H9080
EAN: 4017918186623
MPN:
3031513
ST 1,5-PE
Series: ST
3031513 Phoenix Contact Series Terminals

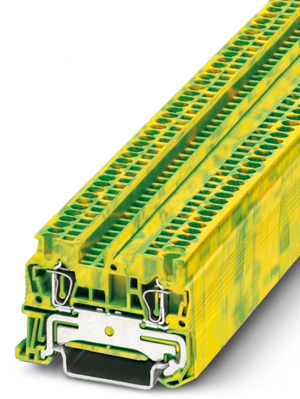

Image may differ
Unit Price (€ / pc.)
3.7961 € *
Available in 10 days: 3,727 pcs. - if ordered today
Total Price:
3.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.7961 €

Spring cage ground terminal block, 3031513, Phoenix Contact

Spring cage ground terminal block, Number of connections: 2, Connection method: Spring-cage connection, 1 level, Cross section: 0.08 mm² - 1.5 mm², Mounting type: NS 35/7,5, NS 35/15, Color: green-yellow

Features

  • Additional labeling options
  • Low contact resistance
  • Corrosion-free terminal points
  • Tested for railway applications
Technical specifications
Colour yellow/green
AWG cross-section AWG 28 to 16
Width 4.2 mm
Height 36.5 mm
Length 48.5 mm
Cable cross-section 0.08-1.5 mm²
Number of terminals 2
Pin number 2 pole
Version protective conductor terminal
Connection spring balancer connection
Degree of soiling 3
Rated surge voltage 6 kV
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
