3031200 | Phoenix Contact

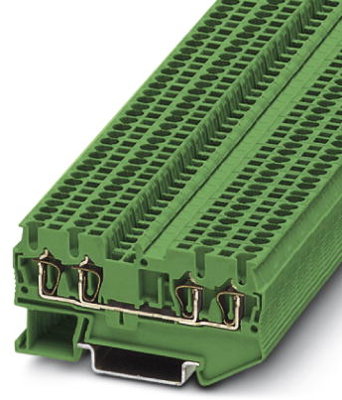

Through terminal block, spring balancer connection, 0.08-1.5 mm², 4 pole, 17.5 A, 6 kV, green, 3031200
Unit Price (€ / pc.)
2.2610 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0944 €
50 pcs.
1.8921 €
100 pcs.
1.7136 €
*incl. VAT plus shipping costs
**Subject to prior sale
Feed-through terminal block, 3031200, Phoenix Contact
Feed-through terminal block, rated voltage: 500 V, nominal current: 17.5 A, connection method: Spring-cage connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.08 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: green.
Features
- Cross connection to any number of terminal blocks with the consistent FBS plug-in bridge system
- Compact Potential distributor, the double connection enables four conductors to be connected on one potential
- Tested for railway applications
Technical specifications
| Version | Durchgangsklemme | |
| Number of terminals | 4 | |
| Pin number | 4-polig | |
| Cable cross-section | 0,08-1,5 mm² | |
| AWG cross-section | AWG 28 bis 16 | |
| Rated surge voltage | 6 kV | |
| Rated current | 17.5 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 72 mm | |
| Width | 4.2 mm | |
| Height | 36.5 mm | |
| Connection | Federzuganschluss | |
| Colour | grün |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
