3031089 | Phoenix Contact

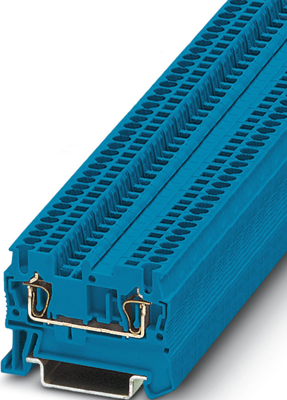

Through terminal block, tension clamp connection, 0.08-1.5 mm², 17.5 A, 6 kV, blue, 3031089
Unit Price (€ / pc.)
1.4478 € *
Available in 5 Days: 1,400 pcs. - if ordered today
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4478 €
10 pcs.
1.3405 €
50 pcs.
1.2481 €
100 pcs.
1.1675 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal block, 3031089, Phoenix Contact
Feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 2, connection method: Spring-cage connection, Rated cross section: 1.5 mm², 1 level, cross section: 0.08 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/15, color: blue.
Features
- The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
- As well as saving space, the compact design and front connection enable user-friendly wiring in a small amount of space
- The large wiring space enables the use of conductors with ferrules and plastic collars within the nominal cross section
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28-16 | |
| Length | 48.5 mm | |
| Rated current | 17.5 A | |
| Height | 44 mm | |
| Colour | blue | |
| Rated surge voltage | 6 kV | |
| Width | 4.2 mm | |
| Degree of soiling | 3 | |
| Connection | tension clamp connection | |
| Version | through terminal block | |
| Rated Voltage | 500 V | |
| Cable cross-section | 0.08-1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
