3010123 | Phoenix Contact

High current terminal, screw connection, 35-150 mm², 1 pole, 309 A, 8 kV, blue, 3010123

Order No.: 60P5327
EAN: 4017918091859
MPN:
3010123
UKH 150 BU
Series: UKH

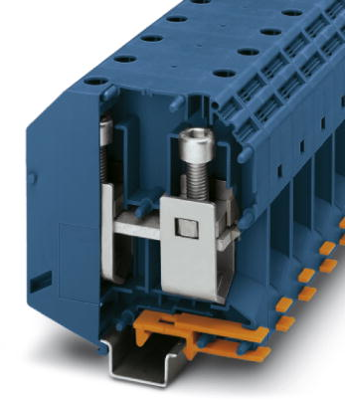

3010123 Phoenix Contact Series Terminals Image 1

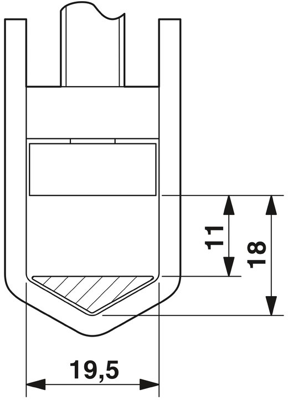

3010123 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
39.6865 € *
Available in 10 days: 1,588 pcs. - if ordered today
Total Price:
39.69 € *
Price list
Quantity
Price per unit*
1 pcs.
39.6865 €
10 pcs.
36.9138 €
25 pcs.
33.9626 €
*incl. VAT plus shipping costs
Subject to prior sale

High current terminal block, 3010123, Phoenix Contact

High-current terminal block, rated voltage: 1000 V, nominal current: 309 A, connection method: Screw connection, cross section: 35 mm²  - 150 mm², mounting type: NS 35/15, NS 32, color: blue.

Features

  • Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
  • Low contact resistance of the contact surface due to ribbing
  • Screw locking by means of spring-loaded elements in the clamping part
Technical specifications
Version high current terminal
Number of terminals 2
Pin number 1 pole
Cable cross-section 35-150 mm²
AWG cross-section AWG 1/0
Rated surge voltage 8 kV
Rated current 309 A
Rated Voltage 1000 V
Degree of soiling 3
Length 100 mm
Width 31 mm
Height 107.3 mm
Connection screw connection
Colour blue
Logistics
Country of origin IN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
