3002616 | Phoenix Contact
Through terminal block, push-in connection, 0.2-6.0 mm², 30 A, 6 kV, gray, 3002616
Unit Price (€ / pc.)
2.2610 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0825 €
50 pcs.
1.8921 €
100 pcs.
1.7136 €
*incl. VAT plus shipping costs
Subject to prior sale

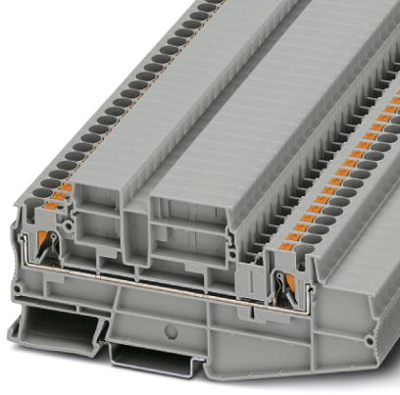

Feed-through terminal block, 3002616, Phoenix Contact
Feed-through terminal block, rated voltage: 500 V, nominal current: 30 A, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Easy and tool-free direct plug-in thanks to push-in multi-conductor connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | through terminal block | |
| Number of terminals | 2 | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated current | 30 A | |
| Degree of soiling | 3 | |
| Width | 6.2 mm | |
| Colour | gray | |
| Height | 54.5 mm | |
| Length | 118.5 mm | |
| Rated surge voltage | 6 kV | |
| Rated Voltage | 500 V | |
| AWG cross-section | AWG 24 to 10 | |
| Connection | push-in connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
