3001420 | Phoenix Contact

Protective conductor terminal, screw connection, 0.5-16 mm², 3 pole, 8 kV, yellow/green, 3001420

Order No.: 60P5259
EAN: 4017918089894
MPN:
3001420
UK 10-PLUS-PE
Series: UK
3001420 Phoenix Contact Series Terminals

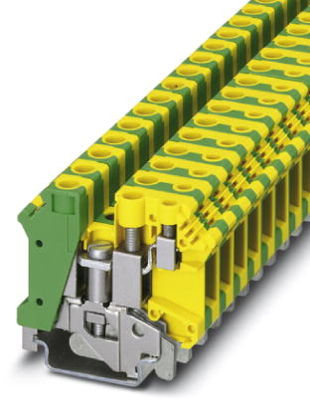

Image may differ
Unit Price (€ / pc.)
12.9948 € *
Available in 5 Days: 334 pcs. - if ordered today
Total Price:
649.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
12.9948 €

Ground modular terminal block, 3001420, Phoenix Contact

1-level ground modular terminal block with single-sided double connection, cross section: 0.5 - 10 mm², AWG: 24 - 6, width: 10.2 mm, color: green-yellow.

Features

  • Same shape and pitch as the feed-through terminal blocks
  • Universal protective conductor foot for mounting on NS 35 or NS 32 DIN rails
Technical specifications
Filter Property Value
Pin number 3 pole
Height 47 mm
Colour yellow/green
Degree of soiling 3
Cable cross-section 0.5-16 mm²
Version protective conductor terminal
Connection screw connection
AWG cross-section AWG 20 to 6
Width 10.2 mm
Rated surge voltage 8 kV
Length 53 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin PL
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
