3001372 | Phoenix Contact
Protective conductor terminal, screw/plug-in connection, 0.14-6.0 mm², 2 pole, 8 kV, yellow/green, 3001372
Unit Price (€ / pc.)
3.7009 € *
Standard delivery time from the manufacturer is: 4 Weeks

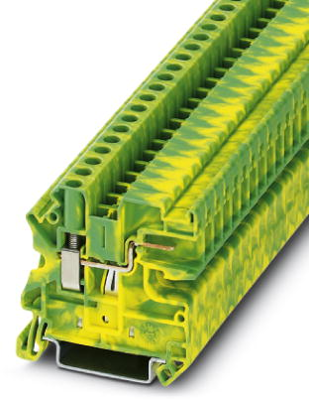

Ground modular terminal block, 3001372, Phoenix Contact
Ground modular terminal block, number of connections: 2, connection method: Screw/plug-in connection, cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: green/yellow.
Features
- Same shape and pitch as the feed-through terminal blocks
- Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow/green | |
| Number of terminals | 2 | |
| Width | 6.2 mm | |
| Connection | screw/plug-in connection | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 26 to 10 | |
| Pin number | 2 pole | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.14-6.0 mm² | |
| Height | 47.5 mm | |
| Length | 49.8 mm | |
| Rated surge voltage | 8 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
