3000611 | Phoenix Contact
Protective conductor terminal, screw connection, 0.2-4.0 mm², 1 pole, 8 kV, yellow/green, 3000611
Unit Price (€ / pc.)
6.2237 € *
Available: 20 pcs.
Available in 5 Days: 6,350 pcs. - if ordered today

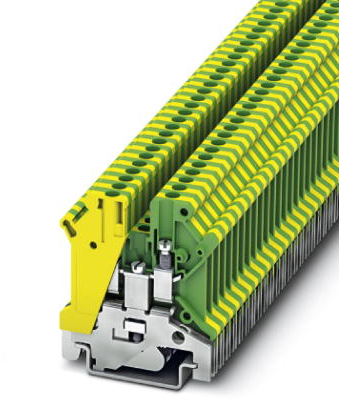

Ground modular terminal block, 3000611, Phoenix Contact
Ground modular terminal block, number of connections: 2, number of positions: 1, connection method: Screw connection, cross section: 0.2 mm² - 4 mm², mounting: PE foot with mounting screw, M2.5, mounting type: NS 35/7,5, NS 35/15, NS 32, color: green-yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow/green | |
| Number of terminals | 2 | |
| Width | 5.2 mm | |
| Connection | screw connection | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 24 to 12 | |
| Pin number | 1 pole | |
| Version | protective conductor terminal | |
| Cable cross-section | 0.2-4.0 mm² | |
| Height | 50.2 mm | |
| Length | 42.5 mm | |
| Rated surge voltage | 8 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
