2972136 | Phoenix Contact
Potential distributor, screw connection, 0.2-6.0 mm², 6 pole, 16 A, 2.2 kV, green, 2972136
Unit Price (€ / pc.)
213.0933 € *
Standard delivery time from the manufacturer is: 6 Weeks

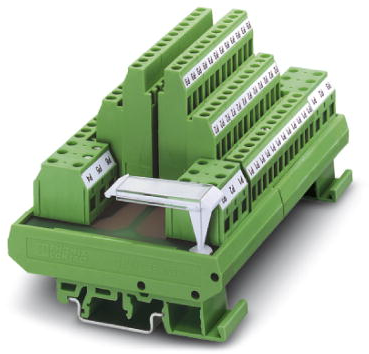

Potential distributor, 2972136, Phoenix Contact
VARIOFACE module, with six equipotential busbars (P1, P2, P3, P4, P5, P6) for potential distribution, for mounting on NS 35/7.5 or NS 32
Features
- Consecutive numbering
- Separate supply
- Two potential levels
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 24 to 10 | |
| Length | 71 mm | |
| Rated current | 16 A | |
| Height | 77 mm | |
| Colour | green | |
| Rated surge voltage | 2.2 kV | |
| Width | 124 mm | |
| Degree of soiling | 2 | |
| Connection | screw connection | |
| Pin number | 6 pole | |
| Version | potential distributor | |
| Rated Voltage | 250 V | |
| Cable cross-section | 0.2-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
