2903800 | Phoenix Contact

Potential distributor, push-in connection, 0.25-0.6 mm², 2 pole, 30 A, gray, 2903800

Order No.: 64P4748
EAN: 4046356796743
MPN:
2903800
VIP-3/PT/PDM-2/48
Series: VIP
2903800 Phoenix Contact Series Terminals Image 1
2903800 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
116.0964 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
116.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
116.0964 €

Potential distributor, 2903800, Phoenix Contact

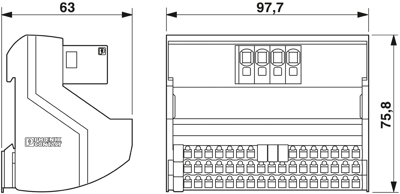

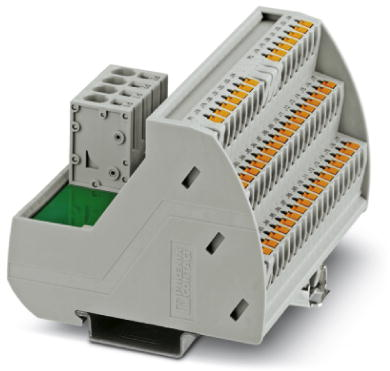

VARIOFACE module, with two equipotential busbars (P1, P2) for potential distribution, for mounting on NS 35 rails. Module width: 97.7 mm.

Technical specifications
Cable cross-section 0.25-0.6 mm²
Width 97.7 mm
AWG cross-section AWG 24 to 10
Pin number 2 pole
Connection push-in connection
Colour gray
Rated Voltage 250 V
Length 63 mm
Height 75.8 mm
Rated current 30 A
Degree of soiling 2
Version potential distributor
Logistics
Customs tariff number 85369010
Country of origin US
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
