2903717 | Phoenix Contact

Potential distributor, screw connection, 0.2-0.6 mm², 2 pole, 30 A, gray, 2903717

Order No.: 64P4708
EAN: 4046356813778
MPN:
2903717
VIP-2/SC/PDM-2/48
Series: VIP
2903717 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
99.0437 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
99.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
99.0437 €

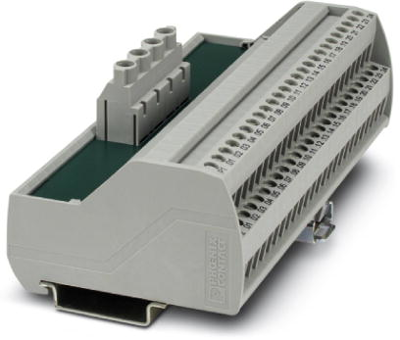

Potential distributor, 2903717, Phoenix Contact

VARIOFACE module, with two equipotential busbars (P1, P2) for potential distribution, for mounting on NS 35 rails. Module width: 131.5 mm.

Technical specifications
Pin number 2 pole
Version potential distributor
AWG cross-section AWG 24 to 10
Cable cross-section 0.2-0.6 mm²
Width 131.5 mm
Rated Voltage 250 V
Degree of soiling 2
Connection screw connection
Height 65.5 mm
Length 45.1 mm
Colour gray
Rated current 30 A
Logistics
Customs tariff number 85369010
Country of origin US
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
