2902958 | Phoenix Contact

Supply terminal, Screw connection

Order No.: 64P5367
EAN: 4046356702713
MPN:
2902958
MINI MCR-SL-PTB-FM
Series: MINI MCR
2902958 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
123.9028 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
123.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
123.9028 €

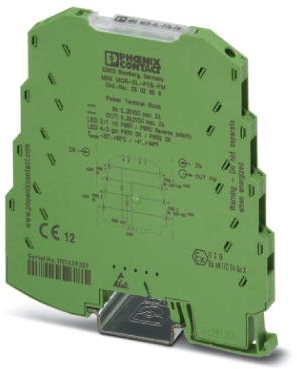

Power terminal block, 2902958, Phoenix Contact

The MINI MCR-SL-PTB-FM(-SP) power terminal block is used to supply the supply voltage to the DIN rail connector. Two separate voltage inputs enable redundant and diode-decoupled power supply up to a maximum current of 2 A.

Technical specifications
Filter Property Value
AWG cross-section AWG 26 to 12
Connection screw connection
Width 6.2 mm
Cable cross-section 0.2-2.5 mm²
Rated Voltage 29.2 V
Version supply terminal
Height 93.1 mm
Colour green
Length 102.5 mm
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
