2902068 | Phoenix Contact

Through terminal block, Screw connection, grey

Order No.: 64P5309
EAN: 4046356649957
MPN:
2902068
MINI MCR-2-TB
Series: MINI MCR
2902068 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
85.1802 € *
Available in 10 days: 22 pcs. - if ordered today
Total Price:
85.18 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
85.1802 €

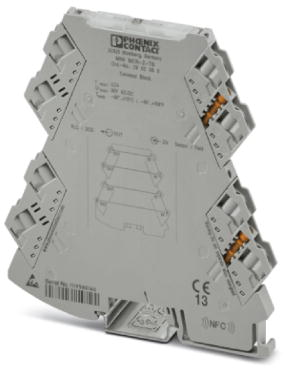

Feed-through terminal block, 2902068, Phoenix Contact

Feed-through terminal block with plug-in connection technology for the transmission of signals already electrically isolated. The Feed-through terminal block supports NFC communication.

Technical specifications
Filter Property Value
Degree of soiling 2
Colour gray
Version through terminal block
Length 119.2 mm
Connection screw connection
Cable cross-section 0.14-2.5 mm²
Height 109.81 mm
AWG cross-section AWG 24 to 12
Width 6.2 mm
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
