2902066 | Phoenix Contact

Supply terminal, Screw connection, green

Order No.: 64P5293
EAN: 4046356649933
MPN:
2902066
MINI MCR-2-PTB
Series: MINI MCR
2902066 Phoenix Contact Series Terminals
Image may differ
Unit Price (€ / pc.)
131.7925 € *
Available in 10 days: 48 pcs. - if ordered today
Total Price:
131.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
131.7925 €

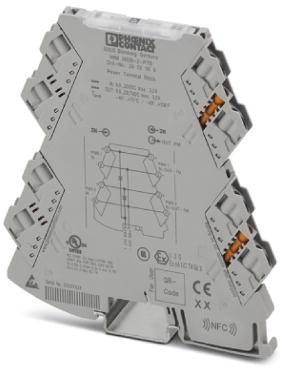

Power terminal block, 2902066, Phoenix Contact

The power terminal with plug-in connection technology is used to deliver the supply voltage to the DIN rail connector. Two separate voltage inputs permit a redundant and diode-decoupled power supply up to a maximum current of 3.2 A. The power terminal supports NFC communication.

Technical specifications
Cable cross-section 2.5-2.5 mm²
Rated Voltage 29.7 V
AWG cross-section AWG 24 to 12
Height 109.81 mm
Version supply terminal
Length 119.2 mm
Connection screw connection
Width 6.2 mm
Colour green
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
SVHC free No
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
