2811420 | Phoenix Contact
Through terminal block, screw connection, 0.2-2.5 mm², 1 A, green, 2811420
Unit Price (€ / pc.)
93.4031 € *
Standard delivery time from the manufacturer is: On Request

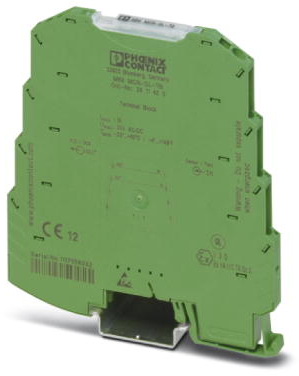

Feed-through terminal block, 2811420, Phoenix Contact
The 6.2 mm narrow MINI MCR-SL-TB is a feed-through terminal block for the transmission of signals that are already electrically isolated.
Features
- Feed-through terminal block for 1:1 forwarding of signals in the MINI Analog group
- Use in conjunction with the MINI Analog multiplexer
- For direct mounting in applications without signal conversion and without electrical isolation

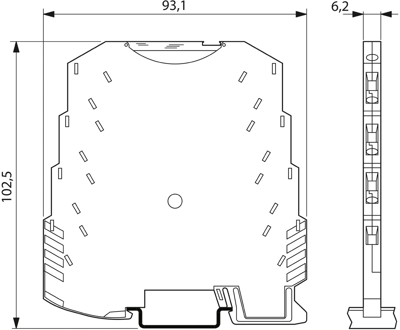

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Width | 6.2 mm | |
| Colour | green | |
| AWG cross-section | AWG 24 to 12 | |
| Length | 101.2 mm | |
| Degree of soiling | 3 | |
| Rated Voltage | 30 V | |
| Version | through terminal block | |
| Height | 93.1 mm | |
| Rated current | 1 A | |
| Cable cross-section | 0.2-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
