2801483 | Phoenix Contact

Potential distributor, push-in connection, 0.2-2.5 mm², 60 A, 0.5 kV, gray, 2801483

Order No.: 64P6410
EAN: 4046356782333
MPN:
2801483
CBB TM 12 2X6RC P-PT
Series: CBB

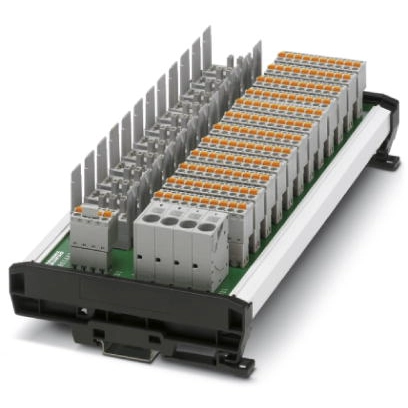

2801483 Phoenix Contact Series Terminals Image 1
2801483 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
347.6942 € *
Available in 10 days: 7 pcs. - if ordered today
Total Price:
347.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
347.6942 €

Potential distributor, 2801483, Phoenix Contact

Device circuit breaker boards for twelve CB TM1 thermomagnetic circuit breakers with group remote signaling, central supply, and potential distribution for up to five loads per channel.

Technical specifications
Rated surge voltage 0.5 kV
Rated Voltage 24 V
AWG cross-section AWG 24 to 12
Length 70.8 mm
Colour gray
Connection push-in connection
Cable cross-section 0.2-2.5 mm²
Rated current 60 A
Version potential distributor
Width 118.5 mm
Height 127.8 mm
Degree of soiling 2
Logistics
Customs tariff number 85340090
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
