2801482 | Phoenix Contact
Potential distributor, push-in connection, 0.2-2.5 mm², 60 A, 0.5 kV, gray, 2801482
Unit Price (€ / pc.)
286.5044 € *
Standard delivery time from the manufacturer is: 7 Weeks

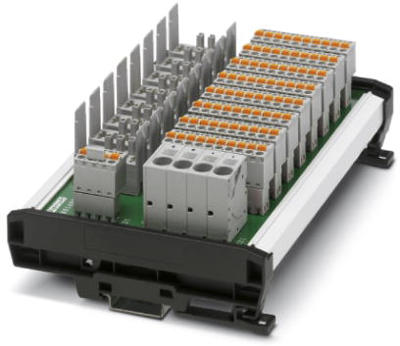

Potential distributor, 2801482, Phoenix Contact
Device circuit breaker boards for eight CB TM1 thermomagnetic circuit breakers with group remote signaling, central supply, and potential distribution for up to five loads per channel.

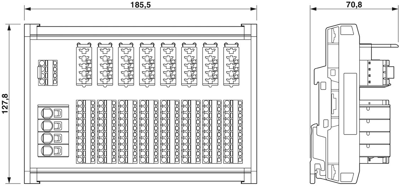

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Width | 118.5 mm | |
| Connection | push-in connection | |
| Degree of soiling | 2 | |
| AWG cross-section | AWG 24 to 12 | |
| Rated Voltage | 24 V | |
| Version | potential distributor | |
| Cable cross-section | 0.2-2.5 mm² | |
| Height | 127.8 mm | |
| Length | 70.8 mm | |
| Rated current | 60 A | |
| Rated surge voltage | 0.5 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85362010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
