2801481 | Phoenix Contact

Potential distributor, push-in connection, 0.2-2.5 mm², 48 A, 0.5 kV, gray, 2801481

Order No.: 64P6408
EAN: 4046356782319
MPN:
2801481
CBB TM 04 2X2RC P-PT
Series: CBB

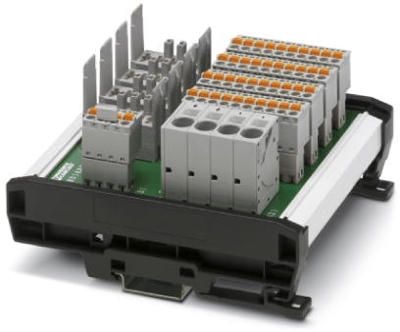

2801481 Phoenix Contact Series Terminals Image 1
2801481 Phoenix Contact Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
223.3511 € *
Available in 5 Days: 21 pcs. - if ordered today
Total Price:
223.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
223.3511 €

Potential distributor, 2801481, Phoenix Contact

Device circuit breaker boards for four CB TM1 thermomagnetic circuit breakers with group remote signaling, central supply, and potential distribution for up to five loads per channel.

Technical specifications
Filter Property Value
Rated Voltage 24 V
Connection push-in connection
Rated current 48 A
Version potential distributor

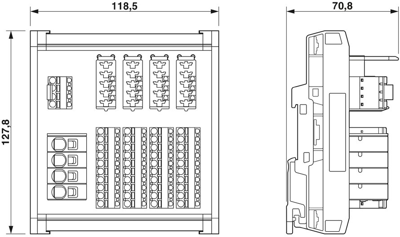

Width 118.5 mm
Height 127.8 mm
AWG cross-section AWG 24 to 12
Degree of soiling 2
Rated surge voltage 0.5 kV
Colour gray
Length 70.8 mm
Cable cross-section 0.2-2.5 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85340090
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
