2800570 | Phoenix Contact
Through terminal block, screw connection, 0.2-4.0 mm², 24 A, 6 kV, gray, 2800570
Unit Price (€ / pc.)
8.6394 € *
Standard delivery time from the manufacturer is: 4 Weeks

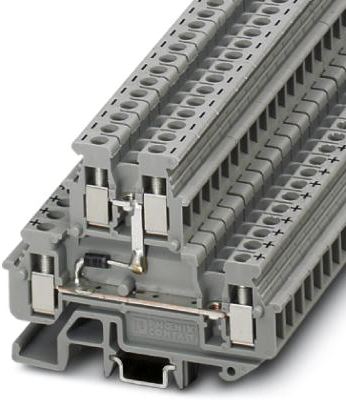

Mini feed-through terminal block, 2800570, Phoenix Contact
Mini feed-through terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, rated voltage: 500 V, nominal current: 24 A, 1st and 2nd level, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting: NS 15, NS 35/7,5, NS 35/15, color: gray.
Features
- Thanks to the different versions of double-level diode terminal blocks, a variety of switching tasks can be performed
- Space saving thanks to compact design and mounting option on a 15 mm DIN rail
- Clear arrangement thanks to marking of all terminal points
- Easy potential distribution thanks to standardized plug-in bridges
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| AWG cross-section | AWG 24 to 12 | |
| Rated current | 24 A | |
| Width | 5.2 mm | |
| Height | 47.5 mm | |
| Length | 62 mm | |
| Cable cross-section | 0.2-4.0 mm² | |
| Version | through terminal block | |
| Connection | screw connection | |
| Degree of soiling | 3 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
