2775207 | Phoenix Contact

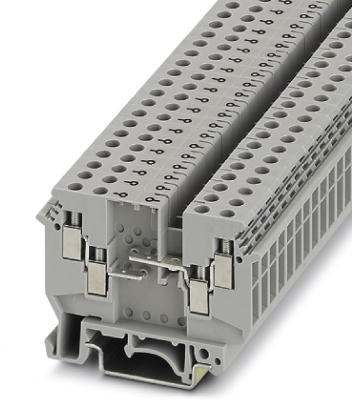

Through terminal block, screw connection, 0.2-6.0 mm², 4 pole, 32 A, 8 kV, gray, 2775207
Unit Price (€ / pc.)
12.2927 € *
Available in 5 Days: 1,071 pcs. - if ordered today
Total Price:
12.29 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2927 €
10 pcs.
11.4359 €
50 pcs.
10.4006 €
100 pcs.
9.3534 €
*incl. VAT plus shipping costs
Subject to prior sale
Feed-through terminal, 2775207, PHOENIX
Feed-through terminal block, for installation of self-selectable components, rated voltage: 630 V, rated current: 32 A, type of connection: screw connection, cross-section: 0.2 mm² - 6 mm², AWG: 24 - 10, length: 63.5 mm, width: 6.2 mm, color: gray, mounting: NS 35/7.5, NS 35/15, NS 32, rated voltage: 630 V.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | through terminal block | |
| Number of terminals | 4 | |
| Pin number | 4 pole | |
| Cable cross-section | 0.2-6.0 mm² | |
| AWG cross-section | AWG 24 to 10 | |
| Rated surge voltage | 8 kV | |
| Rated current | 32 A | |
| Rated Voltage | 630 V | |
| Degree of soiling | 3 | |
| Length | 63.5 mm | |
| Width | 6.2 mm | |
| Height | 47 mm | |
| Connection | screw connection | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
