2771133 | Phoenix Contact
Through terminal block, plug-in connection, 0.5-6.0 mm², 20 A, 6 kV, gray, 2771133
Unit Price (€ / pc.)
6.2237 € *
Available in 5 Days: 228 pcs. - if ordered today
Total Price:
6.22 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2237 €
10 pcs.
5.7358 €
50 pcs.
5.2241 €
100 pcs.
4.6886 €
*incl. VAT plus shipping costs
Subject to prior sale

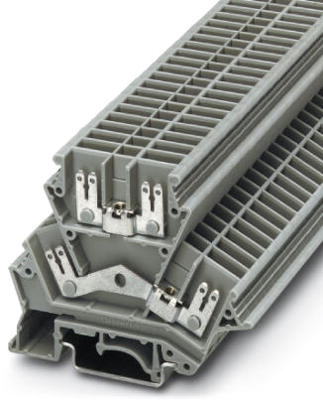

Feed-through terminal block, 2771133, Phoenix Contact
Feed-through terminal block, rated voltage: 400 V, nominal current: 20 A, connection method: Spade connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.5 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Width | 6.2 mm | |
| Connection | plug-in connection | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 20 to 10 | |
| Rated Voltage | 400 V | |
| Version | through terminal block | |
| Cable cross-section | 0.5-6.0 mm² | |
| Height | 59 mm | |
| Length | 72 mm | |
| Rated current | 20 A | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
